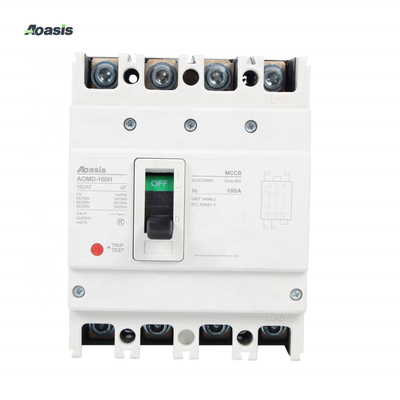

AOASIS AOMD-160H 2P 3P 4P DC Circuit Breaker 16A 20A 32A 40A 50A 63A 80A 100A 125A 140A 160A Circuit Breaking

1.0 Pieces
MOQ
AOASIS AOMD-160H 2P 3P 4P DC Circuit Breaker 16A 20A 32A 40A 50A 63A 80A 100A 125A 140A 160A Circuit Breaking
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: AOMD-160H
Type: Moulded Case
Poles Number: 4
Rated Voltage: Other
Rated current: 16A,20A,32A,40A,50A,63A,80A,100A,125A,160A
Rated voltage: DC250V,DC500V,DC750V,DC1000V
Pole: 2P 3P 4P
Rated frequency: 50/60 Hz
Breaking capacity: DC250V(35KA),DC500V(25KA),DC750V(15KA),DC1000V(10KA)
Material: High Standard Plastic Silver Copper
Certificate: CCC CE CB ISO9001
Application: Circuit-breaking
Product name: MCCB DC
Color: Black White
Informazioni di base
Certificazione: CCC CE CB ISO9001
Model Number: AOMD-160H
Termini di pagamento e spedizione
Packaging Details: Export Carton
Supply Ability: 9999999 Piece/Pieces per Month
Descrizione di prodotto
AOMD series DC moulded-case circuit breaker is suitable for DC systems of rated voltage up to
and including DC 1000V and rated current 10~800A, used to distribute electric power energy,
protect circuits and power equipment against overload , short circuit and so on .
Type
AOMD-125H
AOMD-160H
AOMD-250H
Pole
2P, 3P, 4P
2P, 3P, 4P
2P, 3P, 4P

Rated current (A)
16, 20, 32, 40, 50,
63, 80, 100, 125
16, 20, 32, 40, 50,63, 80, 100, 125, 140, 160
125, 140, 160, 180, 200, 225, 250
Rated voltage
DC250V, DC500V, DC750V, DC1000V
DC250V, DC500V, DC750V, DC1000V
DC250V, DC500V, DC750V, DC1000V
Rated insulation voltage
DC1000V
DC1000V
DC1000V
Short-circuit breaking capacity (KA)
DC250V(35kA), DC500V(25kA),
lcu(lcs=70%Icu)
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA)
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA)
DC250V(35kA), DC500V(25kA), DC750V(15kA), DC1000V(10kA)
Operating cycle number
ON
6000
3000
3000
OFF
9000
7000
7000

(mm) a-b-c-ca Outline dim. (mm) a-b-c-ca
2P
50-130-68-90
60-155-88-115
-
3P
75-130-68-90
90-155-88-115
105-165-88-115
4P
100-130-68-90
120-155-88-115
140-165-88-115

Weight (kg)
2P
0.55
1.0
-
3P
0.65
1.1
1.5
4P
0.8
1.4
1.9
Electric operating device (MD)
●
●
●
External driving operating handle
●
●
●
Automatic release
Thermal electromagnetic type
Thermal electromagnetic type
Thermal electromagnetic type
Type
AOMD-400M
AOMD-800H
Pole
2P, 3P, 4P
2P, 3P, 4P
Rated current (A)
250, 315, 350, 400
500, 630, 700, 800
Rated voltage (V)
DC250V, DC500V, DC750V, DC1000V
DC250V, DC500V, DC750V, DC1000V
Rated insulation voltage (V)
DC1000V
DC1000V
Short-circuit breaking capacity (KA)
DC250V(35kA), DC500V(25kA),
lcu(lcs=70%Icu)
DC250V(65kA), DC500V(35kA),
DC750V(25kA), DC1000V(15kA)
DC250V(65kA), DC500V(35kA), DC750V(25kA), DC1000V(15kA)

Operating cycle number
ON
2000
1500
OFF
4000
4000

(mm) a-b-c-ca Outline dim. (mm) a-b-c-ca
2P
140-257-103-155
210-275-103-155
3P
140-257-103-155
210-275-103-155
4P
184-257-103-155
280-275-103-155

Weight (kg)
2P
5.0
9.5
3P
5.7
12.5
4P
7.5
1.4
Electric operating device (MD)
●
●
External driving operating handle
●
●
Automatic release
Thermal electromagnetic type
Thermal electromagnetic type
