Caratteristiche

Specificazioni

Model Number: E73

Breaking Capacity: 150A -450A@14Vdc

Rated Voltage: 14Vdc

Rated Current: 5-30A

Number of Pole: 1

Type: Magnetic

Poles Number: 1

Circuit Breaker Part No: E73 windlass circuit breaker

Circuit Breaker Voltage: up to 28Vdc*

Circuit Breaker Rated Current: Max up to 30amp

Circuit Breaker Mounting: N/A

Circuit Breaker Termination: MINI

Interrupt Capacity: 150A -450A@14Vdc

Regulatory Certificate: SAE J553; CE; ISO 10924

Circuit Breaker Body: 94V0 Thermoset Plastic housing

Informazioni di base

Certificazione: SAE J553; CE; ISO 10924

Model Number: E73

Termini di pagamento e spedizione

Packaging Details: Windlass Circuit Breaker 1.Bulk packed or boxed packed 2.1500pcs/carton 3: Exported cartons. 4: Upon customers' request

Supply Ability: 100000 Piece/Pieces per Month

Descrizione di prodotto

SONGTANG

Part Number	E73

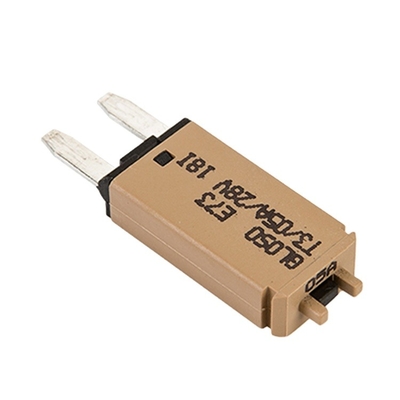

Description	E73 Mini Circuit Breaker T3, Manual Reset Compatible with 280 Type fuse blocks using 0.32" (8.1mm) centerline spacing Type 3, ATM Footprint Circuit Breaker
Family	Thermal Circuit Breakers
Category	E7
Series	E73
Voltage	14Vdc
Rated Current	5-30A
Reset Type	T3, Manual Reset
Operating Temperature	-40ºC (-40ºF) to 85ºC (185ºF)
Dimension	26x12.4x6.4 mm
Weight	4 g
RoHS	Y
Standard Pack	1500
Regulatory Sepcification	SAE J553
HS Code	8536500000
Termination	0.32" (8.1mm) centerline spacing (Mini Type)
Body	94V0 Themoplastic Housing
Storage Temperature	-40ºC (-40ºF) to 125ºC (260ºF)

Product Advantage:

1	Drop in Replacement with Buss 233 series
2	Max Interrupt Rating 450A @ 14Vdc
3	5-30Amp
4	SAE J553; ISO 10924;
5	Amperage Rating Color Coded
