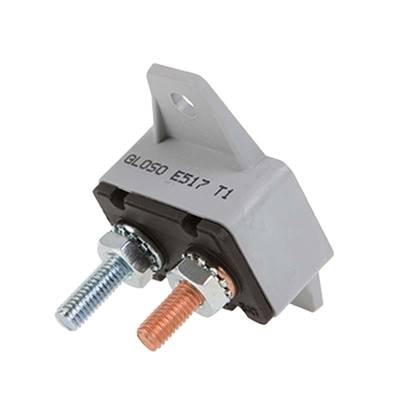

E517 5A 10A 20A 30A 40A 50A Stud Type Automotive Circuit Breaker 2.5kA @ 12Vdc

300 Pieces
MOQ
E517 5A 10A 20A 30A 40A 50A Stud Type Automotive Circuit Breaker 2.5kA @ 12Vdc
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: E517
Type: Thermal
Poles Number: 1
Rated Voltage: 14Vdc
Part No: E517
Voltage: 14Vdc
Rated Current: 5-50A
Mounting: Horizontal (Crosswise) Mounting Bracket
Reset type: T1, Auto Reset
Termination: #10-32 thread
Interrupt Capacity: 2.5kA @ 12Vdc
Regulatory Certificate: SAE J553; SAE J1171; UL1500
Body: Grey Thermoplastic
RoHS: Y
Informazioni di base
Certificazione: SAE J553; SAE J1171; UL1500
Model Number: E517
Termini di pagamento e spedizione
Packaging Details: circuit breaker.. 1.Sems installed, barries pack . 2.300pcs/carton. 3: Exported cartons . 4: Upon customers' request.
Supply Ability: 100000 Piece/Pieces per Month
Descrizione di prodotto



SONGTANG

Part Number E517
Description E5 Stud Type Circuit Breaker
Used in Battery chargers, trucks, buses, RVs, trolling motors, Electri Vehicles etc
Available in ratings from 5 to 50 Amperes.
Complies with SAE J553; SAE J1171; UL1500
Family Thermal Circuit Breakers
Category E5
Series E517
Voltage 14Vdc
Rated Current 5-50A
Mounting Horizontal (Crosswise) Mounting Bracket
Reset Type T1, Auto Reset
Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF)
Interrupt Capacity 2,500A @ 14Vdc
Dimension Length: 1.56"
Width: 0.83"
Height: 0.669"
Unit: inch
Weight 22 g
RoHS Y
Standard Pack 300
HS Code 85362000
Termination #10-32 Thread
Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF)

Product Advantage:

 1

 Thermal Trip-free, Cycling

 2  Branch Circuit Protection: 2.5KA @ 12 Vdc
 3  Main Circuit Protection: 1.5KA @ 12Vdc
 4  100% Hold, 135% Trip (percent of rating)
 5  #10-32 Thread and Quick Connect options available
 6  IP67 Waterproof function
 7  SAE J553
 8  SAE J1171 (ignition protected)
 9  ISO 8846
 10  Stud Mount or Bracket Mount
Application
